High Flow Pressure Regulators
The high-flow range includes diaphragm or piston-sensed regulators with port sizes ranging from 1/2" to 3", and threaded or flanged connections. Pressure control options up to 10 bar (145 psi) with a diaphragm or up to 210 bar (3,045 psi) with a piston. Also available with spring-loaded or dome-loaded to minimise the droop effect on the regulator.

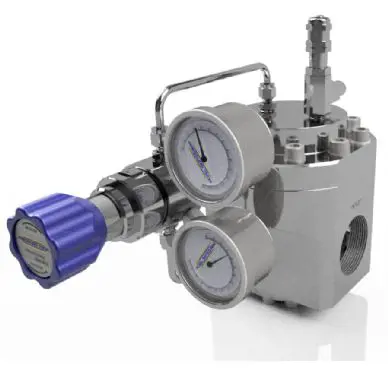

HF211
High-Flow Pressure Regulator: Gas or Liquid / Piston / Non-Venting / Max. Inlet: 210 bar (3,045 psi) / Max. Outlet: 200 bar (2,900 psi) / Cv 13.0
The HF211 is a dome-loaded, piston-sensed high-flow pressure regulator for gas or liquid applications. The liquid version includes a PEEK™ seat, whilst the gas version features PCTFE seating. With a Cv of 13.0, it is perfect for high-flow applications.
The HF211 is fitted with a pilot as standard (MF101 for up to 35 bar / 510 psi outlet pressure and LF540 for over 35 bar / 510 psi and up to 200 bar / 2,900 psi) - please contact the office before placing your order if you do not require a pilot.
+ Leggi
HF250
High-Flow Pressure Regulator: Gas or Liquid / Diaphragm / Non-Venting / Max. Inlet: 250 bar (3,625 psi) / Max. Outlet: 10 bar (145 psi) / Cv 7.0
The HF250 is a diaphragm-sensed high-flow pressure regulator for gas or liquid applications. The liquid version includes a PEEK™ seat, whilst the gas version features PCTFE seating.
It features a balanced main valve as standard for up to 250 bar (3,625 psi) inlet pressure. An unbalanced option can be offered alternatively for applications with maximum inlet pressures of up to 50 bar (725 psi).< >With a Cv of 7.0, the HF250 is perfect for high-flow applications and is also available as a dome-loaded design with a 1:1 ratio.
+ Leggi

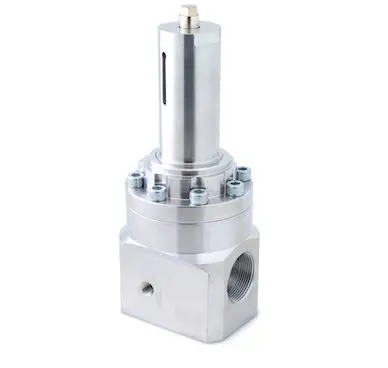

HF251
High-Flow Pressure Regulator: Gas or Liquid / Piston / Non-Venting / Max. Inlet: 250 bar (3,625 psi) / Max. Outlet: 200 bar (2,900 psi) / Cv 7.0
The HF251 is a piston-sensed high-flow pressure regulator for gas or liquid applications. The liquid version includes a PEEK™ seat, whilst the gas version features PCTFE seating.
It features a balanced main valve as standard for up to 250 bar (3,625 psi) inlet pressure. An unbalanced option can be offered alternatively for applications with maximum inlet pressures of up to 50 bar (725 psi).< >With a Cv of 7.0, the HF251 is perfect for high-flow applications.
+ Leggi

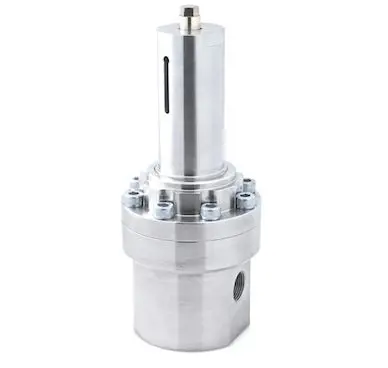

HF301
High-Flow Pressure Regulator: Gas or Liquid / Piston / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 300 bar (4,350 psi) / Cv 4.0
The HF301 is a non-venting piston-sensed high-flow pressure regulator for gas or liquid applications with a balanced main valve design. The liquid version includes a Vespel® seat, whilst the gas version features PEEK™ seating.
The HF301 provides stable control with a high level of accuracy under varying inlet pressures.< >An unbalanced option can be offered alternatively for applications with maximum inlet pressures of up to 50 bar (725 psi).
+ Leggi
