Diving Pressure Regulators
Pressure Tech diving regulators are cleaned to ASTM G93 Level C, for use on for BIBS, hyperbaric chambers, diving bells, control panels and analyser systems. From our standard range to bespoke solutions, we work in partnership with our customers to design and manufacture forward reducing, back pressure and biased pressure regulators. Designed and manufactured in the UK and to the very highest quality, Pressure Tech regulators offer full traceability on all machined parts

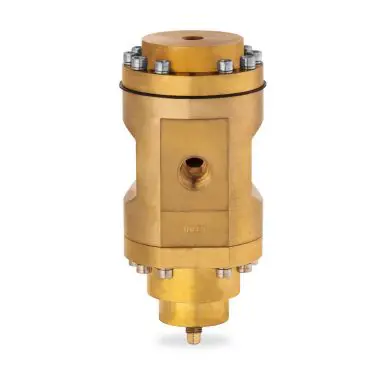

BIBS100
Built-In Breathing System Back Pressure Regulator: Gas / Diaphragm / Max. Rating: 50 bar (725 psi) / Control Range: 30 bar (435 psi) / Cv 2.0
The BIBS100 is a negative-biased, dome-loaded back pressure regulator for gas applications. It offers fine adjustment of the bias spring for enhanced process control.
Its balanced main valve design minimises load on the seat and provides stable pressure control. In addition, servicing is simplified with easy access to the seat cartridge from the base of the regulator.
+ Leggi
LF310
Low-Flow Pressure Regulator: Gas or Liquid / Inconel® X750 Diaphragm / Disk Seat / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06 or 0.15
The LF310 is a single-stage diaphragm-sensed pressure regulator for applications that require higher supply pressures in addition to an extended life cycle.
Based on the LF300 - with its long-lasting Inconel® X750 diaphragm - the LF310 also offers a ‘solid disk’ seat design which is more robust for aggressive or high temperature applications.
+ Leggi

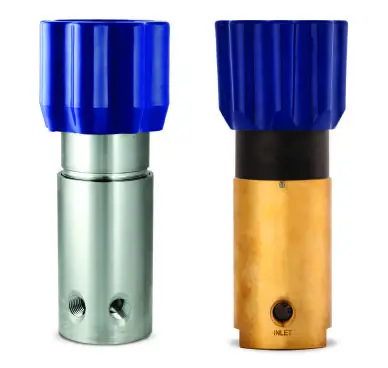

LF540
Low-Flow Pressure Regulator: Gas or Liquid / Piston / Self- or Non-Venting / Max. Inlet: 690 bar (10,000 psi) / Max. Outlet: 414 bar (6,000 psi) / Cv 0.1
The LF540 is a compact and economical piston-sensed, low-flow regulator with precision machined sensing elements to allow fine pressure control up to 414 bar (6,000 psi).
Its load bearings and large handwheel offer low torque adjustment, and the LF540 can be supplied as non-venting or self-venting, non-captured (on gas only). Please note: Cv 0.3 is only available as non-venting.
+ Leggi

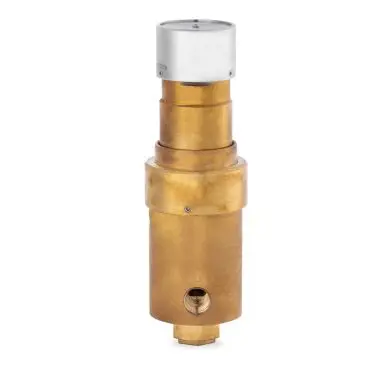

MF300T
Medium-Flow Tracking Pressure Regulator: Gas or Liquid / Piston / Self-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Spring Adjust. Outlet: 25 bar (360 psi) / Cv 2.0
The MF300T is a piston-sensed self-venting regulator for gas or liquid applications with 1:1 tracking ratio to reference pressure.
The MF300T offers a balanced main valve as standard and features an anti-tamper locking cap as standard with its reference port in an adjustable position to suit your application. The MF300T’s 1/2" and 3/4" designs have been subjected to Oxygen Ignition Tests to EN ISO 7291.
+ Leggi

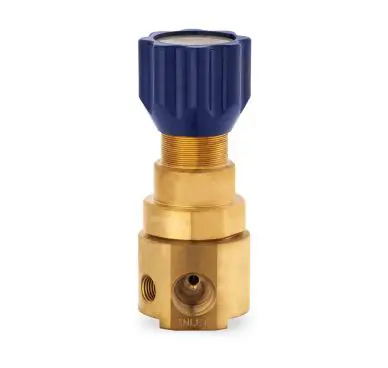

MF101D
Medium-Flow Pressure Regulator for Diving Applications: Gas / Piston / Self-Venting or Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 40 bar (580 psi) / Cv 0.5
The MF101D is a piston-sensed medium-flow pressure regulator.
With a balanced main valve and non-venting as standard, the MF101D enables inlet pressures of up to 300 bar (4,350 psi) and controlling outlet pressures up to 40 bar (580 psi).
In addition, the MF101D is supplied cleaned and degreased to ASTM G93 Level C.
+ Leggi

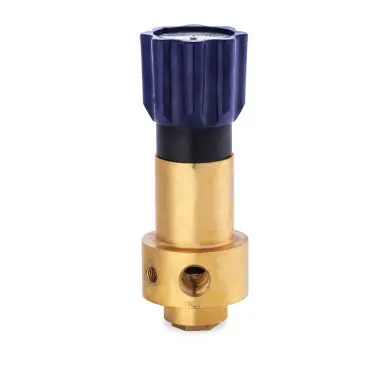

MF301D
Medium-Flow Pressure Regulator for Diving Applications: Gas / Piston / Non- or Self-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 300 bar (4,350 psi) / Cv 2.0
The MF301D is a piston-sensed non-venting or self-venting regulator, designed specifically for diving applications.
It offers a balanced main valve as standard for maximum inlet and control pressures of up to 300 bar (4,350 psi). A baffle plate has been incorporated to reduce turbulence underneath the sensor for very accurate pressure control.
In addition, the MF301D is supplied cleaned and degreased to ASTM G93 Level C.
+ Leggi
