Medium Flow Pressure Regulators
Our medium-flow pressure regulators are primarily for use on gas service with diaphragm-sensed elements to control up to 10bar (145psi) and piston-sensed elements covering higher requirements up to 414bar (6,000psi). Available in 316SS and brass with the option of parts degreased to G93 for use on oxygen service. Port sizes from 1/2" to 1".
DF1034
Dual-Flow Pressure Regulator: Liquid / Piston / Self-Venting / Max. Inlet: 1,034 bar (15,000 psi) / Max. Outlet: 1,034 bar (15,000 psi) / Cv 1.5 (primary) & 0.06 (secondary)
The DF1034 is a piston-sensed pressure regulator with an incorporated cascaded main valve feature for quick fill of umbilical lines and high pressure water glycol applications up to 1,034 bar (15,000 psi).
Its dual-flow main valve offers a high flow via its primary main valve with a high Cv of 1.5, and the ability to fine tune the control pressure via its secondary main valve with a lower Cv of 0.06.
The DF1034’s design has been considered to descrease pressurisation time and, to ultimately, extend the life cycle of the regulator.
+ Leggi

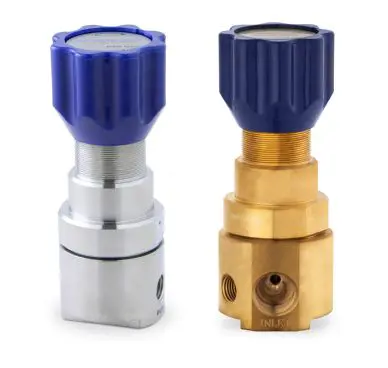

MF101
Medium-Flow Pressure Regulator: Gas or Liquid / Piston / Cone Seat / Self-Venting or Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 40 bar (580 psi) / Cv 0.5
The MF101 is a piston-sensed medium-flow pressure regulator. With an unbalanced main valve and non-venting design as standard, the MF101 controls outlet pressures up to 40 bar (580 psi) from a maximum 100 bar (1,450 psi) inlet pressure.
Alternatively, a balanced option can be offered with a non-venting or self-venting (non-captured) design and enables inlet pressures of up to 414 bar (6,000 psi) using a PEEK™ seat, controlling outlet pressures up to 35 bar (510 psi).
+ Leggi
MF210
Medium-Flow Pressure Regulator: Gas / PTFE-Lined Diaphragm / Non-Venting / Max. Inlet: 40 bar (580 psi) / Max. Outlet: 10 bar (145 psi) / Cv 1.8
The MF210 is a single-stage, PTFE-lined diaphragm sensed pressure regulator. It provides enhanced sensitivity and control with non-hysteresis.
The MF210’s design features no o-rings and is supplied with an unbalanced main valve as standard. In addition, it’s PTFE-lined diaphragm is also Food and Drug Administration (FDA) compliant. For added versatility, it is offered with a range of end connectors including NPT, Tube Stub or VCR
+ Leggi
MF230
Medium-Flow Pressure Regulator: Gas or Liquid / Elastomeric Diaphragm / Non-Venting / Max. Inlet: 230 bar (3,350 psi) / Max. Outlet: 10 bar (145 psi) / Cv 1.0
The MF230 is a versatile and economical medium-flow pressure regulator for gas and liquid applications with a large sensitive elastomeric diaphragm.
The MF230 features a balanced main valve design which minimises load on the seat and provides stable pressure control under decaying inlet conditions. Additionally, servicing is simplified with easy access to the seat cartridge from the base of the regulator.
+ Leggi

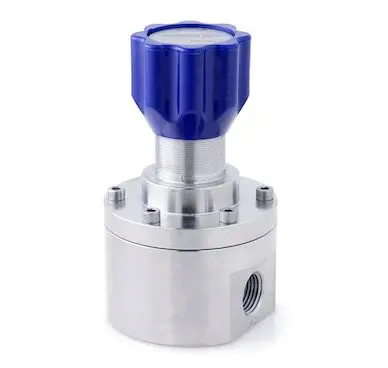

MF231
Medium-Flow Pressure Regulator: Gas / Piston / Non-Venting / Max. Inlet: 230 bar (3,350 psi) / Max. Outlet: 100 bar (1,450 psi) / Cv 1.0
The MF231 is a versatile and economical piston-sensed medium-flow pressure regulator for gas applications.
The MF231 features a balanced main valve design which minimises load on the seat and provides stable pressure control under decaying inlet conditions. Additionally, servicing is simplified with easy access to the seat cartridge from the base of the regulator.
+ Leggi
MF300T
Medium-Flow Tracking Pressure Regulator: Gas or Liquid / Piston / Self-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Spring Adjust. Outlet: 25 bar (360 psi) / Cv 2.0
The MF300T is a piston-sensed self-venting regulator for gas or liquid applications with 1:1 tracking ratio to reference pressure.
The MF300T offers a balanced main valve as standard and features an anti-tamper locking cap as standard with its reference port in an adjustable position to suit your application. The MF300T’s 1/2" and 3/4" designs have been subjected to Oxygen Ignition Tests to EN ISO 7291.
+ Leggi

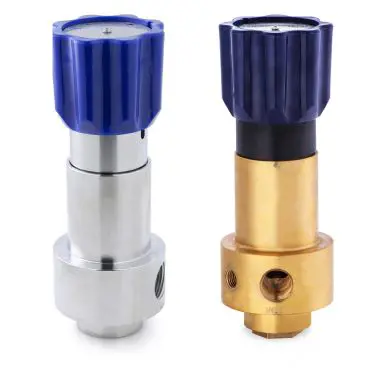

MF301
Medium-Flow Pressure Regulator: Gas or Liquid / Piston / Non- or Self-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 300 bar (4,350 psi) / Cv 2.0
The MF301 is a piston-sensed non-venting or self-venting regulator for gas or liquid applications. A PEEK™ seat is required for liquid applications.
The MF301 offers a balanced main valve as standard for maximum inlet and control pressures of up to 300 bar (4,350 psi). For higher pressures, please refer to our MF400/401. Alternatively, an unbalanced option can be offered for applications with maximum inlet and control pressures of up to 50 bar (725 psi).
+ Leggi

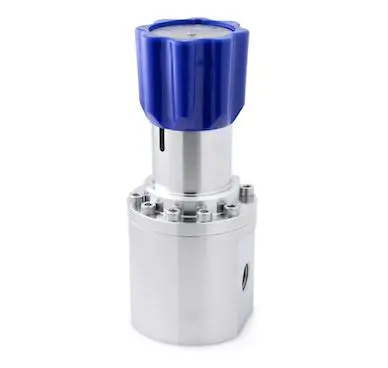

MF400
Medium-Flow Pressure Regulator: Gas or Liquid / Diaphragm / Non-Venting / Max. Inlet: 400 bar (5,800 psi) / Max. Outlet: 10 bar (145 psi) / Cv 2.0
The MF400 is a versatile diaphragm-sensed non-venting regulator for liquid and gas applications. The liquid version includes a PEEK™ seat, whilst the gas option features PCTFE seating.
The MF400 offers a balanced main valve as standard for up to 400 bar (5,800 psi) inlet pressure. An unbalanced option can be offered alternatively for applications with maximum inlet pressures of up to 50 bar (725 psi). The regulator housing and ‘wetted’ components are precision machined from 316 Stainless Steel, unless otherwise specified.
+ Leggi
MF401
Medium-Flow Pressure Regulator: Gas or Liquid / Piston / Non-Venting / Max. Inlet: 400 bar (5,800 psi) / Max. Outlet: 400 bar (5,800 psi) / Cv 2.0
The MF401 is a versatile piston-sensed non-venting regulator for liquid and gas applications. The liquid version includes a PEEK™ seat, whilst the gas option features PCTFE seating.
The MF401 offers a balanced main valve as standard for up to 400 bar (5,800 psi) inlet pressure. An unbalanced option can be offered alternatively for applications with maximum inlet pressures of up to 50 bar (725 psi). The regulator housing and ‘wetted’ components are precision machined from 316 stainless steel, unless
otherwise specified.
otherwise specified.
