Analyser & Instrumentation Pressure Regulators
Typically incorporating Inconel® X750 diaphragm-sensed elements to provide strength and flexibility, our versatile Analyser and Instrumentation range of pressure regulators include design features that make us the market leaders in this sector with products from gas cylinder regulators to ATEX certified (94/9/EC) heated regulators.

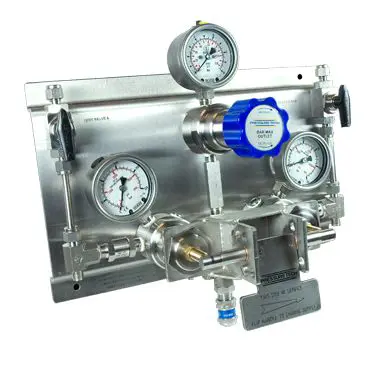

ACS310
Auto-Changeover System: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv 0.06
The ACS310 auto-changeover system provides a continual supply of gas, ideal for applications such as in medical or laboratory processes where a continual supply of gas is essential. Upon depletion of one bank, the other automatically cuts in. A quick switch of the lever ensures the supply is reset to its original value. An optional second stage regulator prevents fluctuations in supply pressure.
The ACS310 incorporates the LF310 regulator with a solid disk type main valve assembly - further details may be found on the LF310 datasheet.
+ Leggi

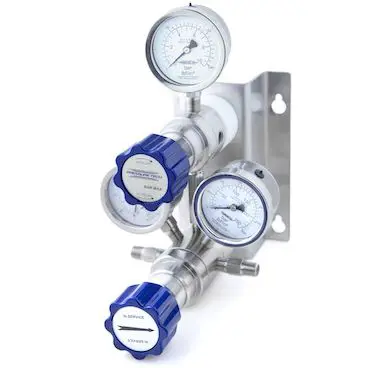

ACU310
Auto-Changeover Regulator/Unit: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv: 0.06
The ACU310 is available in to purchase in two configurations:
Option 1: A standalone changeover regulator comprising of two regulators within one regulator body. This allows the continual supply of gas between two bottles due to a differential pressure setting of the two pressure regulators. This will lead to a change in the outlet pressure as the changeover between the main supply and secondary supply takes place.
Option 2: A compact wall-mounted changeover unit that provides a steady outlet pressure from a second-stage pressure regulator as the first-stage changeover regulator controls the pressure from the primary and secondary gas cylinders.< >Check valves are fitted as standard to both options to prevent gas from escaping whilst bottles are replaced. Ancillary equipment such as pressure gauges and relief valves can also be added.
+ Leggi

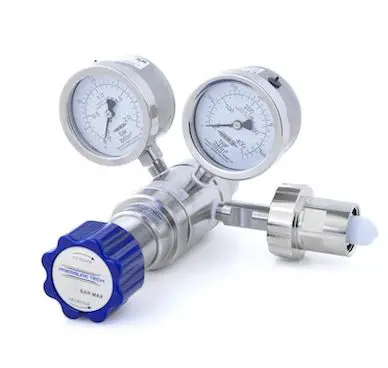

CYL310
Cylinder Pressure Regulator Assembly: Gas / Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06
The CYL310 pressure regulator can be supplied as a single- or two-stage gas cylinder regulator assembly with full safety pattern gauges, relief valve and isolation valve. Please note - the CYL310 is supplied as standard with a bottle connector. Using our ordering system on page 4, customers can effectively design their own assembly to suit their individual application requirements.
+ Leggi
CYL540
Cylinder Pressure Regulator Assembly: Gas / Piston / Self- or Non-Venting / Max. Inlet: 550 bar (7,975 psi) / Max. Outlet: 414 bar (6,000 psi) / Cv 0.1
The CYL540 pressure regulator is a single-stage gas cylinder regulator assembly with full safety pattern gauges, relief valve and isolation valve. Please note - the CYL540 is supplied as standard with a bottle connector.
Using our ordering system on page 4, customers can effectively design their own assembly to suit their individual application requirements. The CYL540 incorporates the LF540 regulator - further details may be found on the LF540 datasheet.
+ Leggi

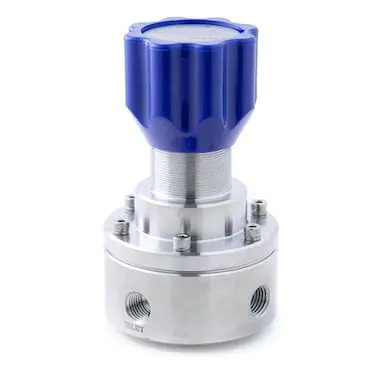

LF240
Low-Flow Pressure Regulator: Gas / Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 10 bar (145 psi) / Cv 0.06
The LF240 is a single-stage low-flow pressure regulator for gas applications with a large sensitive elastomeric diaphragm for accurate low pressure control.
With a solid disk seat design, the LF240 enables higher inlet pressures of up to 414 bar (6,000 psi). Lightweight and relatively compact, it is perfect for customers looking for a regulator with a smaller footprint.
+ Leggi

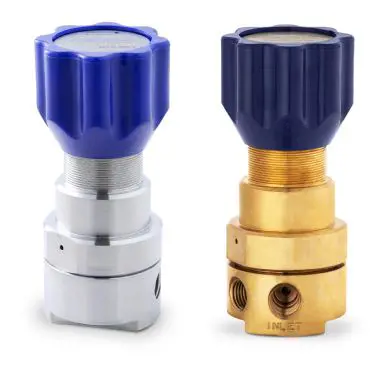

LF310
Low-Flow Pressure Regulator: Gas or Liquid / Inconel® X750 Diaphragm / Disk Seat / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06 or 0.15
The LF310 is a single-stage diaphragm-sensed pressure regulator for applications that require higher supply pressures in addition to an extended life cycle.
Based on the LF300 - with its long-lasting Inconel® X750 diaphragm - the LF310 also offers a ‘solid disk’ seat design which is more robust for aggressive or high temperature applications.
+ Leggi

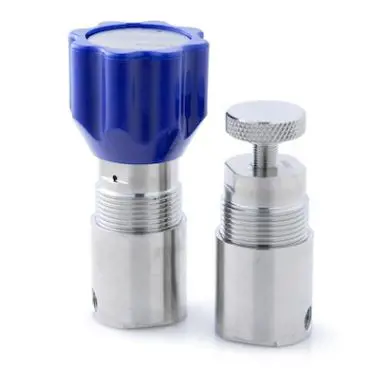

MINI300
Compact and Low-Flow Pressure Regulator: Gas / Piston / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 100 bar (1,450 psi) / Cv 0.06
The MINI300 provides an economical, lightweight and versatile regulator range, designed for customers who
want accurate control from a compact unit. The MINI300 features fully supported ‘sensitive’ pistons with low pressure and high-pressure outlet options. There is also a choice of handwheel or thumbwheel adjustment.
want accurate control from a compact unit. The MINI300 features fully supported ‘sensitive’ pistons with low pressure and high-pressure outlet options. There is also a choice of handwheel or thumbwheel adjustment.
+ Leggi
TS310
Two-Stage Pressure Regulator: Gas / Inconel® X750 Diaphragm / Disk Seat / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 25 bar (360 psi) / Cv 0.06
The TS310 is a two-stage diaphragm-sensed pressure regulator with solid disk seat design to allow use on wide temperate range and media types, with no elastomeric seals. Suitable for stable pressure control under decaying inlet conditions.
The first stage of the regulator is preset at the factory and locked to prevent alteration. The second stage of the regulator, with a PCTFE seat as standard, can be adjusted by the user between various outlet pressures within the range.
+ Leggi

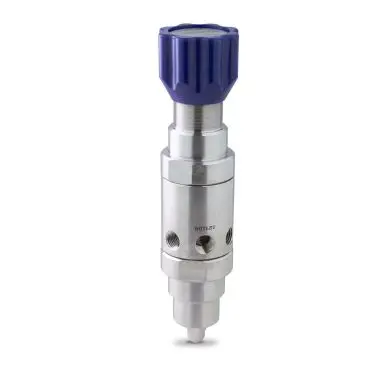

TS311
Two-Stage Pressure Regulator Gas / Piston / Disk Seat / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 20 bar (290 psi) / Cv 0.06
The TS311 is a two-stage piston-sensed pressure regulator with solid disk seat design and is ideal for Hydrogen applications where embrittlement of metal diaphragms can lead to failure.
The large piston sensed elements provide stable pressure control under decaying inlet pressure conditions and have the option of spring energised seals to cope with extreme low temperature conditions. The first stage of the regulator is preset at the factory and locked to prevent alteration. The second stage of the regulator, with a PCTFE seat as standard, can be adjusted by the user between various outlet pressures within the range.
+ Leggi

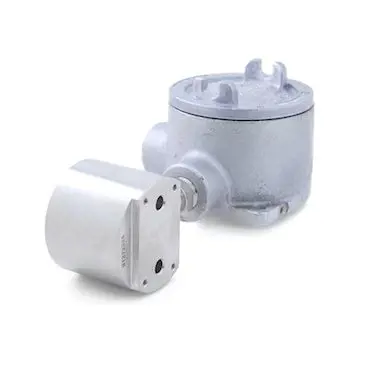

XHM300
Heated Block Manifold Block: Gas or Liquid / Power Supply: 115V or 230V / ATEX & IECEx Certified
The XHM300 is a simple and compact heated manifold block to heat sample stream or probes with two 1/4" flow channels and an 1/8" NPT instrumentation port.
Certified to ATEX and IECEx, the XHM300 is approved for use in hazardous areas. Featuring a single 150W heater cartridge it is available with a choice of 115V or 230V power supply. In addition, its electrical enclosure meets the requirements of IP66 and NEMA 4 specifications.
+ Leggi

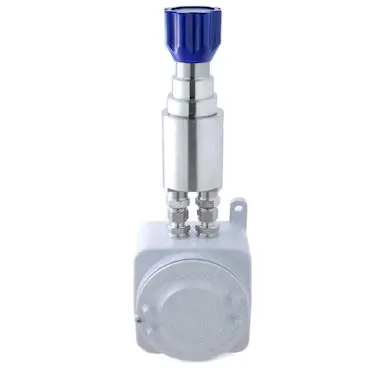

XHR310
Steam or Electric Dual-Heated Pressure Regulator: Gas or Liquid / Inconel® X750 Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06 / ATEX and IECEx Certified
The XHR310 is a diaphragm-sensed, dual-heated pressure regulator, designed to maintain sample liquids and gases in their vapour state. Certified to ATEX directive 2014/34/EU, its two 100W heater cartridges, are inserted in spiral machined sheaths, which agitate the media to help with the heat transfer and analysis process. Alternatively, the steam-heated option see its heater cartridges replaced with steam tubes - contact the office for further details.
The propriety PCB is easy to wire and incorporates a potentiometer to adjust the heater temperature setting, and independent channel isolation switches which can be used to allow effective liquid sampling. In addition, its electrical enclosure meets the requirements of IP66 and NEMA 4 specifications.
+ Leggi
XHR311
Steam or Electric Dual-Heated Pressure Regulator: Gas or Liquid / Piston / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 150 bar (2,175 psi) / Cv 0.06 / ATEX and IECEx Certified
The XHR311 is a piston-sensed, dual-heated pressure regulator, designed to maintain sample liquids and gases in their vapour state.
Certified to ATEX directive 2014/34/EU, its two 100W heater cartridges, are inserted in spiral machined sheaths, which agitate the media to help with the heat transfer and analysis process. Alternatively, the steam-heated option replaces the heater cartridges with steam tubes.
The propriety PCB is easy to wire and incorporates a potentiometer to adjust the heater temperature setting, and independent channel isolation switches for liquid sampling. In addition, its electrical enclosure meets the requirements of IP66.
+ Leggi

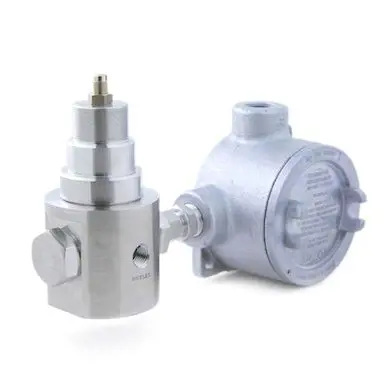

XHS310
Single-Heated Pressure Regulator: Gas / Inconel® X750 Diaphragm-Sensed / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06 / ATEX and IECEx Certified
The XHS310 is an economical single heated regulator, available in side-entry (SE) or in-line (IL) heat transfer options to maintain sample gases in their vapour state.
The side-entry design can be used in applications where heat transfer is less critical, and where installations have height restrictions. The in-line design maximises the heat transfer area via a unique spiral machined heater sheath, which mixes the gas and ensures efficient heat transfer.
+ Leggi
XHS311
Single-Heated Pressure Regulator: Gas / Piston / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 150 bar (2,175 psi) / Cv 0.06 / ATEX and IECEx Certified
The XHS311 is a piston-sensed, economical single heated regulator, available in side-entry (SE) or in-line (IL) heat transfer options to maintain sample gases in their vapour state.
The side-entry design can be used in applications where heat transfer is less critical, and where installations have height restrictions. The in-line design maximises the heat transfer area via a unique spiral machined heater sheath, which mixes the gas and ensures efficient heat transfer.
