Back Pressure Regulators
A back pressure regulator accurately controls the inlet pressures to any process. Our range covers port sizes from 1/8" to 2" and control pressures from 0.1 bar (2 psi) to 690 bar (10,000 psi) on gas or liquid applications. The designs provide accurate and repeatable shut-off due to the large sensing area and minimised loading on the seating area

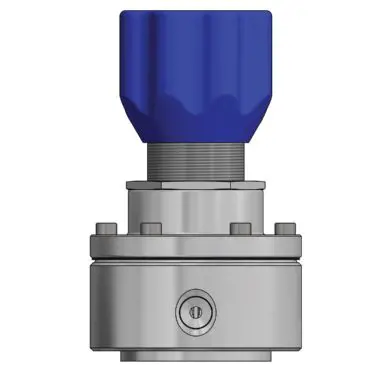

BP010
Back Pressure Regulator: Gas / Elastomeric Diaphragm / Max. Rating: 10 bar (145 psi) / Control Range: Up to 5 bar (75 psi) / Cv 0.1
The BP010 is an elastomeric diaphragm-sensed back pressure regulator, offering sensitive control. Featuring a spring-loaded design, the BP010 offers a bolted bonnet for simplified servicing through its top access. In addition, its threaded bonnet comes as standard for optional panel mounting.
A sub-atmospheric version is also available which can be used to control a negative pressure upstream of the regulator - please ask for details.
+ Leggi
BP300
Back Pressure Regulator: Gas or Liquid / Diaphragm / Max. Rating: 35 bar (510 psi) / Control Range: 20 bar (300 psi) / Cv 0.1
The BP300 is an Inconel® X750 diaphragm-sensed back pressure regulator.
Its compact and simple design makes it ideal for general purpose applications and for systems that do not require accurate control of upstream pressure.
+ Leggi

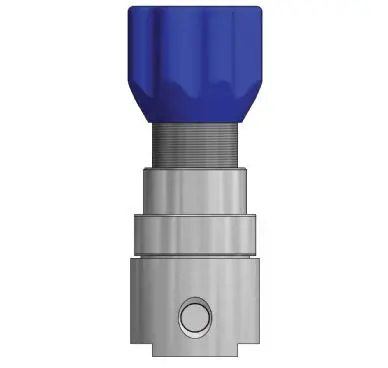

BP301
Back Pressure Regulator: Gas or Liquid / Piston / Max. Rating: 150 bar (2,175 psi) / Control Range: 150 bar (2,175 psi) / Cv 0.1
The BP301 is a piston-sensed back pressure regulator for accurate back pressure control on both gas (PCTFE seat) and liquid applications. It is a popular choice for our electrolyser customers who rely on accurate and reliable pressure regulation to enhance the efficiency and life span of the electrolyser.
It is available with flanged connections, perfect for systems that do not accept other options.
With a lower Cv of 0.1, the BP301 can control pressures of up to 150 bar (2,175 psi). Alternatively, with a higher Cv of 0.5, it can control up to 50 bar (725 psi).
+ Leggi
BP-LF540
Low-Flow Back Pressure Regulator: Gas or Liquid / Piston / Max. Rating: 414 bar (6,000 psi) / Control Range: Up to 414 bar (6,000 psi) / Cv 0.1
The BP-LF540 is a compact piston-sensed low-flow back pressure regulator for gas or liquid applications, making it a versatile regulator across a range of medias. With a low flow coefficient of 0.1, it offers highly accurate back pressure control.
The BP-LF540 is available in an air-actuated design, making it perfect for semi or fully automated systems.
+ Leggi
BP-LF690
Low-Flow Back Pressure Regulator: Gas or Liquid / Piston / Max. Rating: 550 bar (7,975 psi) / Control Range: Up to 414 bar (6,000 psi) / Cv 0.1 or 0.02
The BP-LF690 is a piston-sensed low-flow back pressure regulator for gas or liquid applications. The gas version includes a thermoplastic seat, whilst the liquid version features metal-to-metal seating. In addition to Stainless Steel, it is available in a range of materials including Titanium, Vespel® and Hastelloy®.
The BP-LF690 accurately controls inlet pressure and vents excess pressure back via the threaded 1/2" NPT / BSP or 9/16" MP outlet port.
+ Leggi
BP-LF691
Low-Flow Back Pressure Regulator: Gas or Liquid / Piston / Max. Rating: 1,034 bar (15,000 psi) / Control Range: Up to 900 bar (13,050 psi) / Cv 0.1 or 0.02
The BP-LF691 is a piston-sensed low-flow back pressure regulator for gas or liquid applications. As standard, the gas version includes a PEEK™ seat, whilst the liquid version features 316SS seating. Alternatively, other seats are available to suit your application including Titanium, Vespel® and Hastelloy®.
The BP-LF691 accurately controls inlet pressure and vents excess pressure back via the threaded 1/2" NPT / BSP or 9/16" MP outlet port.
+ Leggi

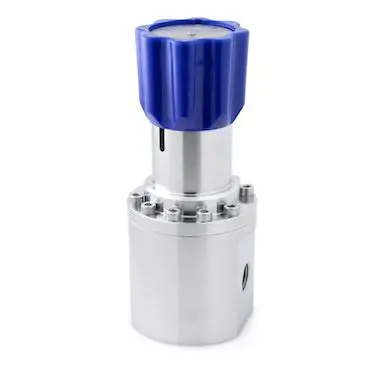

BP-MF400
Medium-Flow Back Pressure Regulator: Gas or Liquid / Diaphragm / Solid Disk Seat / Max. Rating: 10 bar (145 psi) / Control Range: Up to 10 bar (145 psi) / Cv 3.0
The BP-MF400 is a diaphragm-sensed medium-flow back pressure regulator for gas or liquid applications. The liquid version includes a PEEK™ seat, whilst the gas version features PCTFE seating.
This accurate regulator controls inlet pressure and vents excess pressure back via the threaded NPT or BSP outlet port of up to 1".
+ Leggi
BP-MF401
Medium-Flow Back Pressure Regulator: Gas or Liquid / Piston / Solid Disk Seat / Max. Rating: 400 bar (5,800 psi) / Control Range: 200 bar (2,900 psi) / Cv 3.0
The BP-MF401 is a piston-sensed medium-flow back pressure regulator for gas or liquid applications with a balanced main valve design. The liquid version includes a PEEK™ seat, whilst the gas version features PCTFE seating.
This accurate regulator controls inlet pressure and vents excess pressure back via the threaded NPT or BSP outlet port of up to 1".
+ Leggi

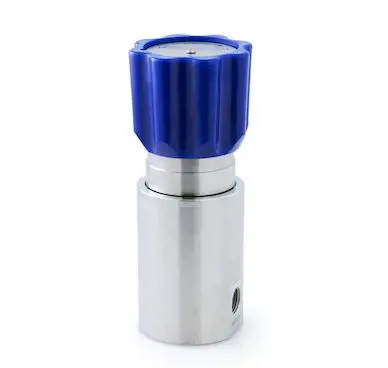

BP-MF690 (05)
Medium-Flow Back Pressure Regulator: Gas or Liquid / Piston / Max. Rating: 550 bar (7,975 psi) / Control Range: Up to 414 bar (6,000 psi) / Cv 0.5
The BP-MF690 (05) is a piston-sensed medium-flow back pressure regulator for gas or liquid applications. The gas version includes a PEEK™ seat, whilst the liquid version features Hastelloy® seating for excellent protection from cavitation and positive shut-off on medium-flow applications.
The BP-MF690 (05) accurately controls inlet pressures of up to 414 bar (6,000 psi) and vents excess pressure back via the threaded NPT, BSP or Medium Pressure outlet port.
+ Leggi

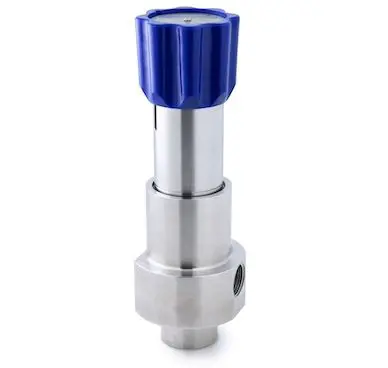

BP-MF690 (15)
Medium-Flow Back Pressure Regulator: Gas or Liquid / Piston / Max. Rating: 690 bar (10,000 psi) / Control Range: Up to 300 bar (4,350 psi) / Cv 1.5
The BP-MF690 (15) is a piston-sensed medium-flow back pressure regulator for gas or liquid applications. The gas version includes a PEEK™ seat, whilst the liquid version features ceramic seating for excellent protection from cavitation and positive shut-off on medium-flow applications.
The BP-MF690 (15) accurately controls inlet pressures of up to 300 bar (4,350 psi) and vents excess pressure back via the threaded NPT outlet port.
+ Leggi
BP-MF691 (05)
Medium-Flow Back Pressure Regulator: Liquid / Piston / Max. Rating: 690 bar (10,000 psi) / Control Range: Up to 690 bar (10,000 psi) / Cv 0.5
The BP-MF691 (05) is a piston-sensed medium-flow back pressure regulator for liquid applications. It includes Hastelloy® seating for excellent protection from cavitation and positive shut-off on medium-flow applications.
The BP-MF691 (05) accurately controls inlet pressures of up to 690 bar (10,000 psi) and vents excess pressure back via the threaded NPT or MP outlet port.
+ Leggi
BIBS100
Built-In Breathing System Back Pressure Regulator: Gas / Diaphragm / Max. Rating: 50 bar (725 psi) / Control Range: 30 bar (435 psi) / Cv 2.0
The BIBS100 is a negative-biased, dome-loaded back pressure regulator for gas applications. It offers fine adjustment of the bias spring for enhanced process control.
Its balanced main valve design minimises load on the seat and provides stable pressure control. In addition, servicing is simplified with easy access to the seat cartridge from the base of the regulator.
+ Leggi
BP-MF401
Medium-Flow Back Pressure Regulator: Gas or Liquid / Piston / Solid Disk Seat / Max. Rating: 400 bar (5,800 psi) / Control Range: 200 bar (2,900 psi) / Cv 3.0
The BP-MF401 is a piston-sensed medium-flow back pressure regulator for gas or liquid applications with a balanced main valve design. The liquid version includes a PEEK™ seat, whilst the gas version features PCTFE seating.
This accurate regulator controls inlet pressure and vents excess pressure back via the threaded NPT or BSP outlet port of up to 1".
